Weld Overlay Cladding

Welcome to world-class weld-overlay-cladding suppliers from India

Home       About us       Products       FAQ       Contact

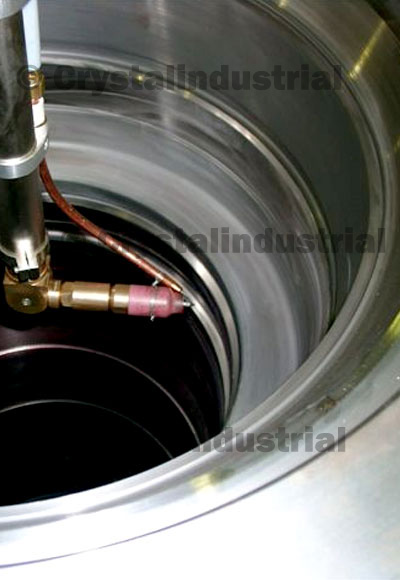

Valve body/Bonnet Cladding
Valve body/Bonnet Cladding
Specialised Cladding using ETR (Fronius) & vertical cladding machine up to bore of 20 mm in Inconel, Hastelloy, monel Etc.

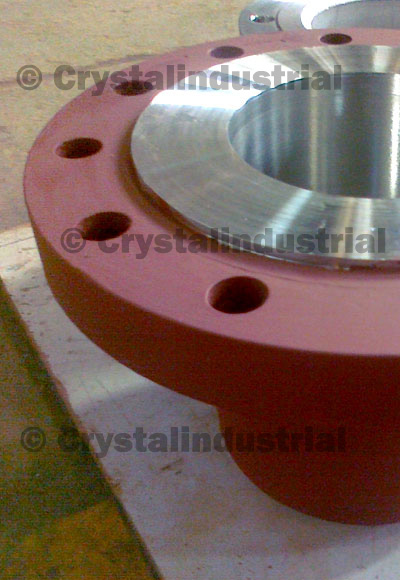

Flange Cladding
Flange Cladding
Capability of up to 2" to 120" flange dia in horizontal and vertical weld cladding machine from (Fronius)
Elbow/ Tee Cladding
Access Fittings

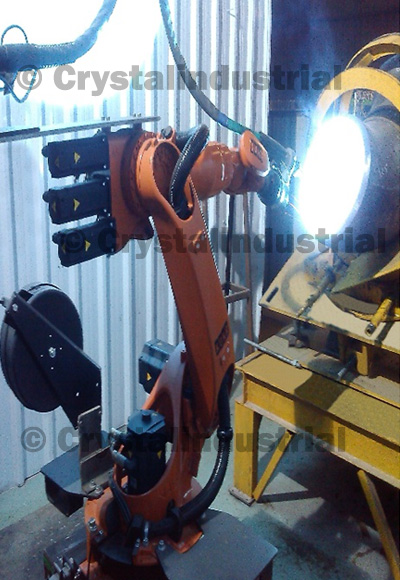

Cladding in Inconel 625/825, Monel. Using welding Robots (Kuka) and ETR (Fronius) for
3" NB to 42" NB including
weld edge bevel cladding

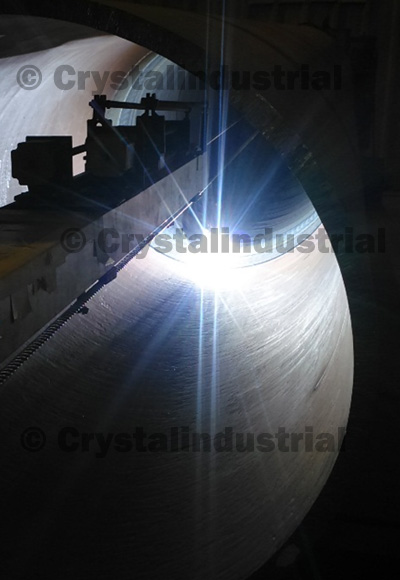

Pipe Cladding
Pipe Cladding
Size form 3" NB to 36" NB using Horizontal pipe cladding machine with Inconel 625/825, monel, Hastelloy and other exotic metals

We make custom-manufactured weld overlay cladding to meet unique requirements of your processes...     MORE

Crystal's weld overlay cladding offer extensive documentation and process information...   MORE
Commonly asked questions about weld overlay cladding answered...    MORE
Crystal's team of engineers offer global support for our clients, anywhere in the world...   MORE
  • Best source of weld overlay cladding from India
  • World class weld overlay cladding from India
  Welcome to world-class weld overlay cladding from Crystal Industrial

Overlay cladding is required for surface protection against corrosion and erosion/corrosion in power boilers and waste heat recovery systems

Weld Overlay Cladding is a process that involves metallurgically bonding a Corrosion Resistant Alloy to the surface of a Base Metal providing it with corrosion resistant property.

In most waste heat recovery systems and boilers, the heat transfer tubes are usually made of ferritic steels, like carbon and Cr-Mo steels.

Ferritic steels provide not just strength and structural integrity for these tubes but also superior resistance to pressure water, high temperature and steam used for the heat transfer.

But, in many cases, the ferritic steels, do not offer sufficient resistance to high temperature corrosion attack from the combustion products in boilers or from the hot exhaust flue gas stream in waste-heat recovery systems.

Using automatic overlay cladding machines, weld overlay cladding with a high-temperature corrosion resistant alloy, has been widely accepted to be an effective, long-term, cost-effective protection method to provide life extension for boilers and waste heat recovery systems.
